    NT Window Energy Master Vinyl Replacement Windows


    State of the Art Vinyl Replacement Windows from The Window Connection - NT Window Dealer of the Year.


    NT Window Energy Master Vinyl Replacement Windows are a great choice for North Texas.  Cost effective and energy efficient they offer more light than standard double hung replacement windows and utilize a local manufacturer with a local glass supplier (Cardinal Glass Waxahatchie)


    An outstanding manufacturer and replacement window selection for North Texas is the Energy Master and the Presidential X-110 units. They have a SHGC of .20. This is one of the best performing vinyl replacement windows out there at its price point. It comes stock with Cardinal's top of the line 366 Low-E Glass and Argon Gas filled insulated glass. It is one of our best sellling Vinyl Replacement Windows.  The window is assembled in Mansfield Texas with Cardinal 366 Glass from the Cardial Manufacturing Plant in Waxahachie.


    This window has optional foam filling, triple glazing and Krypton Gas instead of Argon Gas for even lower U Values and better energy effeciency. The U Values are at .29 on a standard vinyl single hung replacement window that is double paned.  It will have a SHGC of .20 or .21 depending on the window having grids or no grids. The U Value can go down to .17 with Triple Glazing and Krypton Gas but the Solar Heat Gain Coefficient will always be in the .20 neighborhood.

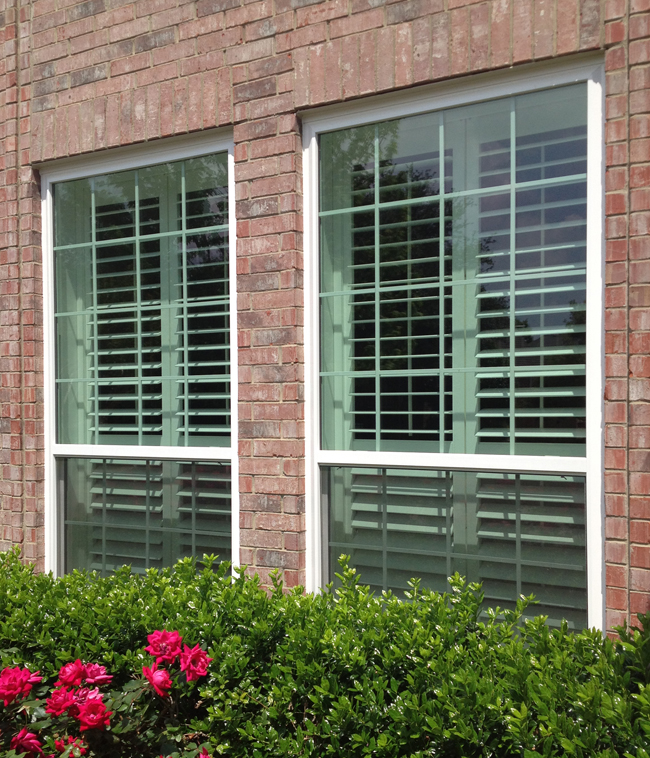

    NT Window Energy Master Vinyl Single Hung Replacement Windows with grids and Cardinal 366 Low E Glass with Argon Gas filled insulated glass


    High performance glass does have some color in it. More color actually means more Low E coating and therefore, better performance as far as the SHGC (Solar Heat Gain Coeffecient).  This is the amount of heat that can come through the glass itself. This window can get down to a .21 or .20 SHGC. Normal double paned come in at .87. Lower is better!


    Energy Masters have a small frame for more glass and more light.  This is very important here in North Texas to many as some windows are very narrow and some homes really need all the light they can get.


    We pride ourselves on perfect arches and circle tops in every application.  There is a reason we offer the best from every manufacturer.


    Options, options and more options.



    NT Window Dealer of the Year 2011 - 2012


    We're very proud to have been named NT Window Dealer of the Year. NT representative Dennis Northcut said it was our commitment to quality installation and customer service that made it happen. Thanks Dennis!!! I think you guys rock too!


    This is a great value and looks good on upper end homes.  No one offers more choices and better built windows than we do.


    I use this window a great deal in North Dallas, Plano, Richardson, Frisco, McKinney, Lantana and other upscale areas in and around North Dallas.


    Frame thickness can be an issue for many home owners.  This replacement window offers one of the smallest frame dimensions available at just 2 5/8" of projection.  This allows more glass and more light into the home.


    This one is interesting. Did you know the shutters and the windows should line up in best case scenarios? The meeting rail of this replacement window needed to match the shutter break and as you can see, it does. Attention to detail is a Window Connection specialty.


    Notice the caulking beads.  This is what a perfect bead looks like.  Our special technique is something that is time consuming but offers amazing results.  You can find the video on our YouTube series.


    This shot shows our attention to detail on caulking beads. Our technique is very specific and is on YouTube and watched dozens of times daily.



    I have had great luck with this replacement window.  It is also very popular for us because of the smaller frame and more glass than many other options available.



    I love the difference new replacement windows make in appearance, but the real value is the energy savings. Energy Master replacement windows can save up to 30% off your current utility bill. This can translate to over $12,000 over 10 years in overall savings by saving just $50 per month at current utilities costs. This can easily be done in most homes with the correct products and installation.

    No one knows more about window manufacturers, window performance, and window installation than does Dave Traynor and The Window Connection. Call us today and find out why D magazine and call us a "Best of Dallas" Window Installation Contractor.




Energy Master Vinyl Windows
Energy Master Executive and Presidential Vinyl Windows and Royal Casement Windows

The Energy Master is also branded as the Executive.

Here's some interesting industry insight. Many window manufacturers sell a given window under several different names. The Energy Master and the Traditions are the same but sold in different circles. Much like the Alside product is the same as the Revere Window, so also is the Executive and the Presidential. Interestingly I think this is also called the Preservation from some vendors. Locally made here in Mansfield Texas, it is a Window Connection favorite for a great value and good bang for the buck. Available as a single hung or a double hung.

Presidential Vinyl Windows
Presidential Vinyl Double Hung Vinyl Windows

NT Executive Energy Master and Presidential Double Hung Vinyl Replacement Windows

The Double Hung Vinyl Replacement Windows and the big discussion about Single Hung vs. Double Hung. Single Hungs have more glass and somewhat better performance (.01 lower U value). It leaks a little less because the top sash is stationary as opposed to a double hung which has operating and tilting top and bottom sashes. The real drawback to the double hung is also that it has a frame thickness at 3 3/4" as opposed to the 2 5/8" we see in the single hung.

Energy Master Vinyl Windows

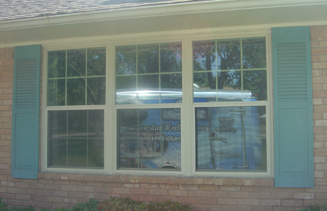

NT Energy Master Single Hung Vinyl in a triple mulled unit

NT Window Energy Master Windows

The frame is 2 5/8" from glass to edge of window. It is the smallest frame in the industry for a full framed vinyl replacement window, It is very desireable in narrow windows or in cases where we really can't afford to loose light. The meeting rails are steel reinforced to prevent sagging, it's locally made and it has a lifetime warranty.Our shipping costs are minimal and it's among the very best values I can find here in Dallas and Fort Worth.

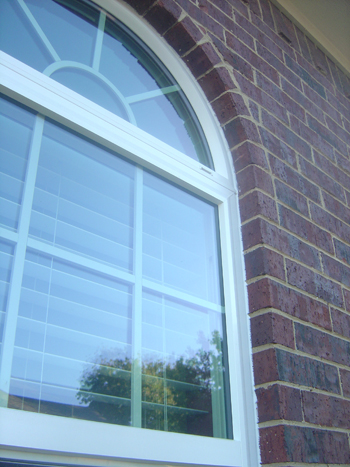

Arched Windows

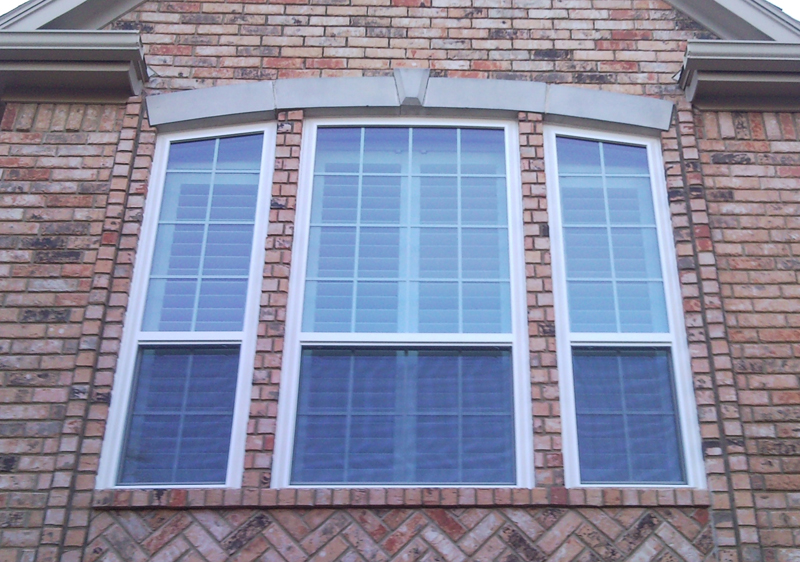

Twin Energy Master Vinyl Replacement Windows with Arched Transome

Arched Windows

There are many variables in manufacturers willingness to make certain types of archtops, extended leg circle tops, full radius, very tall windows and some of the unusual things we see in North Texas, Knowing who makes the best product for a specific opening is key. This was cost effective but perhaps may have been better as a twin from a different window manufacturer. Knowing the options and why to buy can make a residential window project timeless.

Simulated Divided Lites
Simulated divided lite grids on vinyl replacement windows

Simulated Divided Lite Grids are a more traditional look than grids between the glass.

Sometimes people ask for wood windows and upon some inquiry we find out it's really about the grids on the window more than the window itself. Usually we see grids between the glass, in this case we have grids that stick out from the surface of the glass on the inside as well as the outside. This is a great look but is somewhat costly. Grids between the glass are very affordable. All windows can be manufactured either way. This is an Energy Master Double Hung.

Simulated Divided Lites
Simulated divided lite grids on vinyl replacement windows

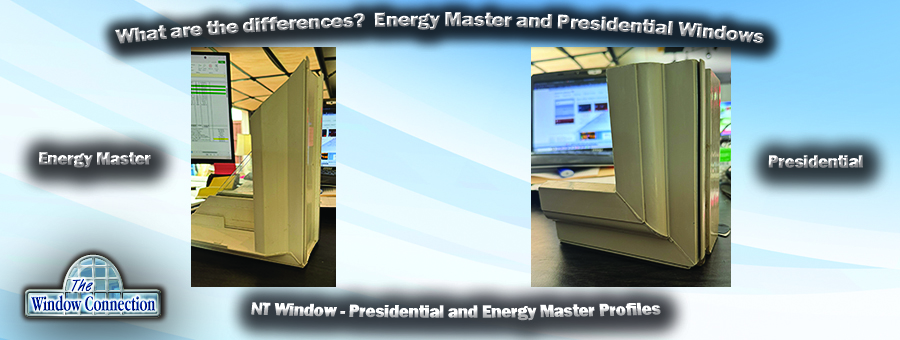

The differences in the Energy Master, Traditions, Presidential and the Executive.

First it's important to understand that there are really only two main frames involved here.


At The Window Connection we sell the Energy Master and the Presidential. Energy Master has a bevelled exterior profile while the Presidential has a cove moulding exterior profile.


The Executive is an Energy Master with no night latches on the inside. These are designed to prevent the window from going up more than about 4 inches when engaged. This is the primary difference in those two.


The Traditions is a Presidential main frame with a slightly different sash member and different locks. The Traditions also comes with a foam filled frame as a standard feature instead of as an upgrade. Foam filling is available on all of the NT Window products. It will lower the U value from a .29 to a .27.
